Tandon PCA

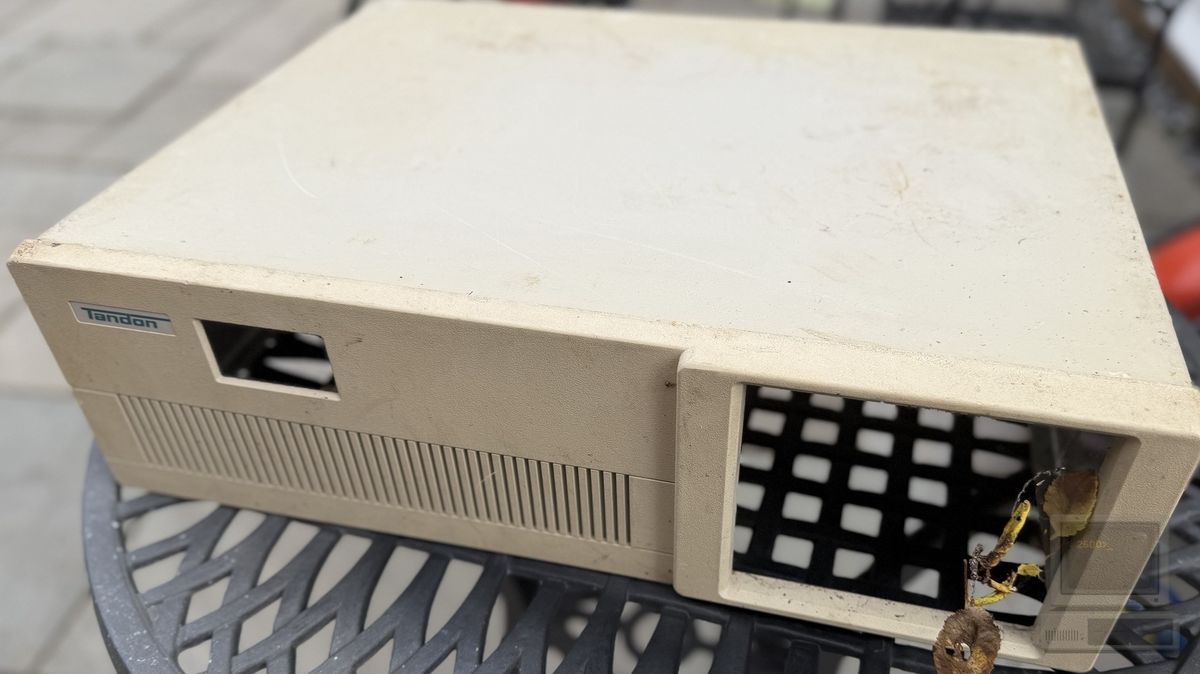

RH-4UJNTandon's AT-class 286, from the drive maker that supplied half the industry. This one was found in extremely poor condition, having been home to rodents: every surface is contaminated, corroded and filthy, and the machine is a candidate for parts or a long decontamination rather than a switch-on.
Details
| Manufacturer | Tandon |
|---|---|
| Model | PCA |
| Form factor | proprietary |
| Chassis | desktop |
| Condition | For parts/repair |
| Source | Mike, Ipswich |
| Acquired | 2026-09-12 |

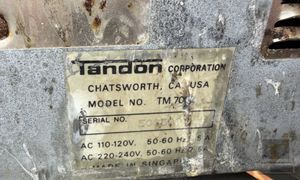

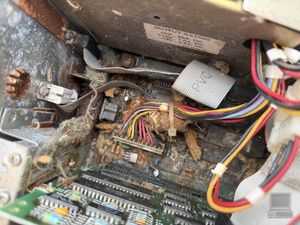

| Notes | Extremely poor condition throughout; the case has been home to rodents. Heavy rust and corrosion on the chassis, drive frames and fixings; nesting material, droppings, leaf litter and cobwebs inside; plastics filthy and stained. Untested and not safe to power on as found. |
Machine
| Catalogue model | PCA — Tandon, 1986 |
|---|---|
| Style | PCA20 (20MB disk) |
| Region | UK |
Chips fitted — what is marked on each
Motherboard

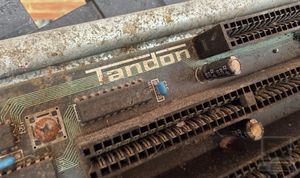

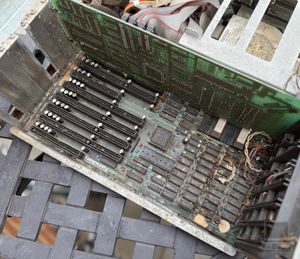

Tandon 286 planar
- CPU family
- 286-class
- Form factor
- proprietary
- Slots
- 8-bit ISA, 16-bit ISA
Parts
2
Panasonic (Matsushita Communication Ind. Co.) JU-475-2
- Kind
- Floppy/Gotek
- Interface
- 34-pin floppy
- Media
- 5.25"
- Role
- Floppy drive
- Form factor
- 5.25"
- Size
- 1.2MB
Tandon TM262
- Kind
- Hard disk
- Interface
- MFM
- Protocol
- MFM
- CHS
- 615/4/17
- Role
- Fixed disk
- Form factor
- 5.25"
- Capacity
- 21 MB (unformatted, ~20 MB formatted)
Work
1/2Part of Tandon PCA
| ○ | Treat rust and corrosion on the chassis, brackets and fixings | |
| ✓ | Fix power supply | 2026-09-17 |
Files
No files for this one yet.
History
| 2026-09-13 |
cropped 2 photos
|
| 2026-09-13 |
notes: Extremely poor condition throughout — the case had been home to rodents. Heavy … → Extremely poor condition throughout; the case has been home to rodents. Heavy r…
|
| 2026-09-12 |
source: (empty) → Mike, Ipswich
acquired_date: (empty) → 2026-09-12
|
| 2026-09-12 |
cropped 4 photos
|
| 2026-09-12 |
added 3 photo(s)
|
| 2026-09-12 |
wanted for Work required by item: Tandon PCA (RH-4JQ9)
|
| 2026-09-12 |
variant: PCA → PCA | Style: PCA20 (20MB disk) | Region: UK | CPU: Intel 80286
notes: Extremely poor condition throughout — the case had been home to rodents. Heavy … → Extremely poor condition throughout — the case had been home to rodents. Heavy …
|
| 2026-09-12 |
added 1 photo(s) ×2
|
| 2026-09-12 |
wanted for Work required by item: Tandon PCA (RH-8DMQ)
|
| 2026-09-12 |
created
|
Photographs
5
