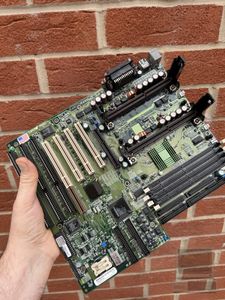

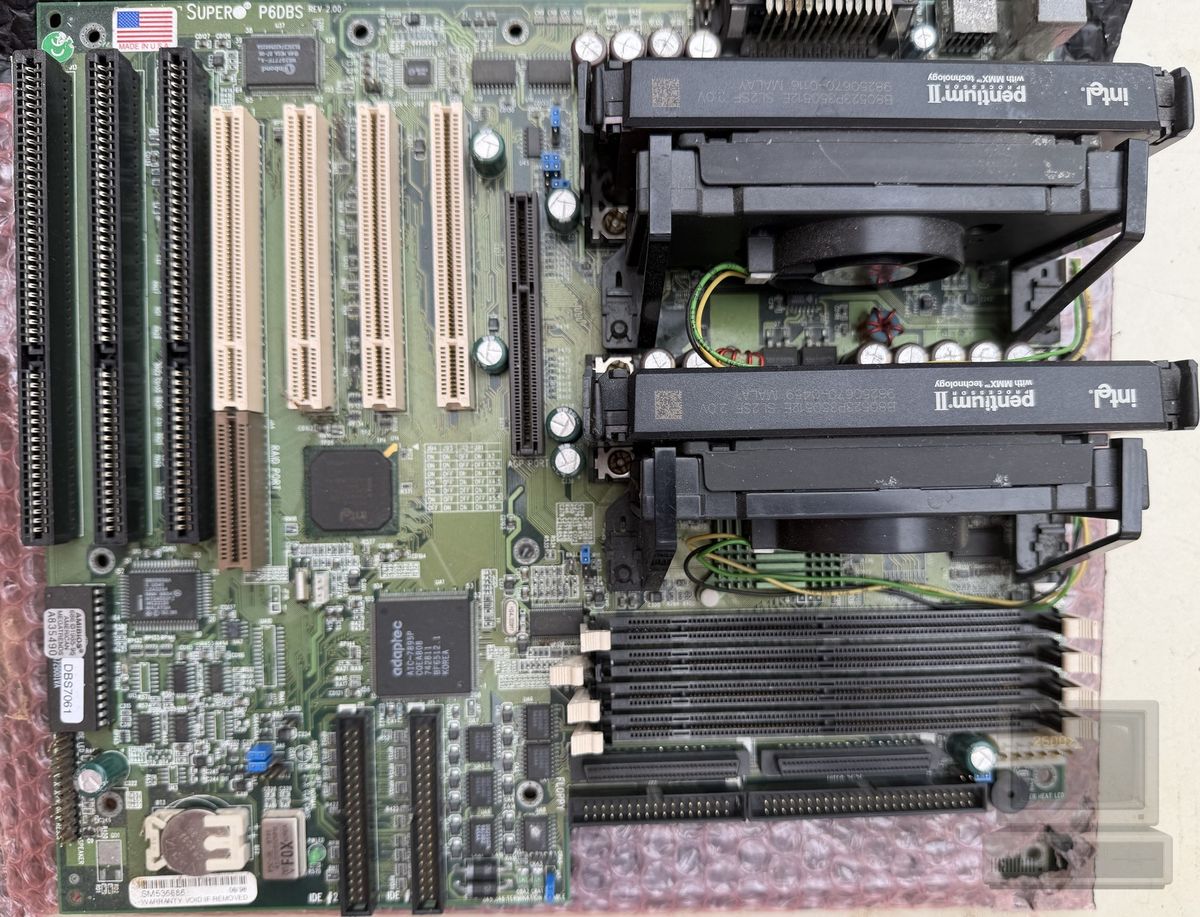

Supermicro Super P6DBS Rev 2.00
Motherboard RH-U7NJDetails
| Manufacturer | Supermicro |
|---|---|
| Model | Super P6DBS Rev 2.00 |
| Year | 1998 |
| Serial | DB57061 |
| Condition | Working |
| Source | Mike, Ipswich |
| Acquired | 2026-09-12 |
| Reference | https://theretroweb.com/motherboards/s/supermicro-p6dbs |
| Notes | Onboard Adaptec AIC-7895P dual-channel Ultra Wide SCSI. |
Specs
| Chipset | Intel 440BX (Seattle) |
|---|---|
| CPU family | Pentium II/III-class |
| Form factor | ATX |
| RAM slots | 4× 168-pin DIMM |
| Slots | 3× 16-bit ISA, 4× PCI, AGP |
| BIOS | AMI |
| Ports | 2× IDE, Floppy, 2× Serial, Parallel, 2× USB |
Work
1/1Part of Supermicro Super P6DBS Rev 2.00
| ✓ | test the board | 2026-09-15 |
Files
No files for this one yet.
History
| 2026-09-15 |
wanted for Supermicro Super P6DBS Rev 2.00 (RH-WZ6C)
|
| 2026-09-13 |
cropped a photo
|
| 2026-09-13 |
rotated a photo
|
| 2026-09-13 |
notes: Dual Slot 1 server/workstation board, silkscreened "SUPER P6DBS REV 2.00", MADE… → Onboard Adaptec AIC-7895P dual-channel Ultra Wide SCSI.
|
| 2026-09-13 |
note Tested. Works great!
|
| 2026-09-13 |
condition: Untested → Working
|
| 2026-09-12 |
notes: Dual Slot 1 server/workstation board, silkscreened "SUPER P6DBS REV 2.00", MADE… → Dual Slot 1 server/workstation board, silkscreened "SUPER P6DBS REV 2.00", MADE…
Slots: 4× PCI, 3× 16-bit ISA, AGP → 3× 16-bit ISA, 4× PCI, AGP
Ports: 2× IDE, Floppy, 2× Ultra Wide SCSI (Adaptec AIC-7895) → 2× IDE, Floppy, 2× Serial, Parallel, 2× USB
|
| 2026-09-12 |
|
| 2026-09-12 |
note washed
|
| 2026-09-12 |
added 1 photo(s)
|
| 2026-09-12 |
created
|
